Description and Specifications

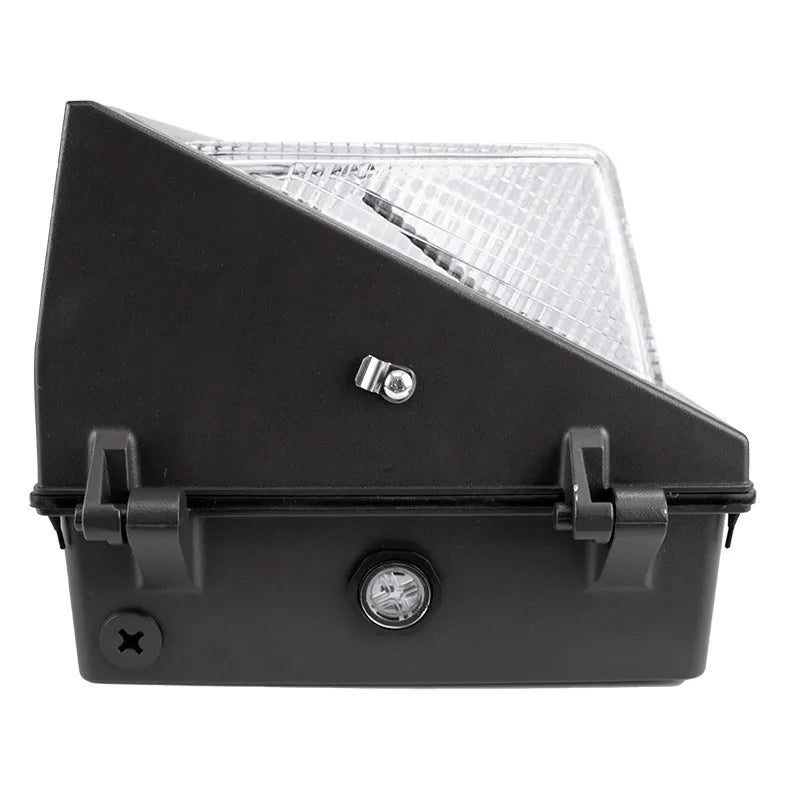

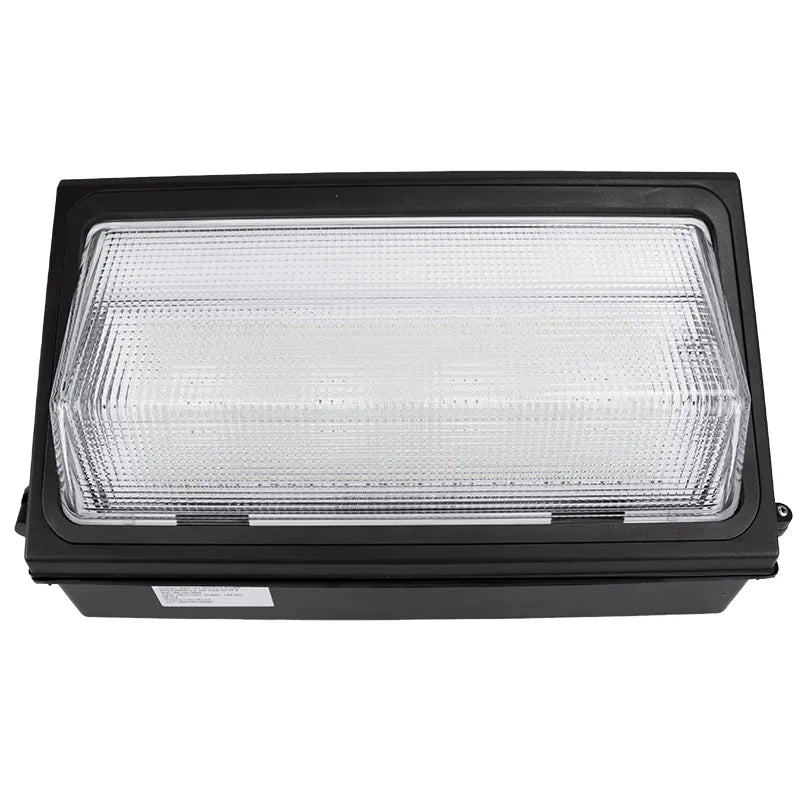

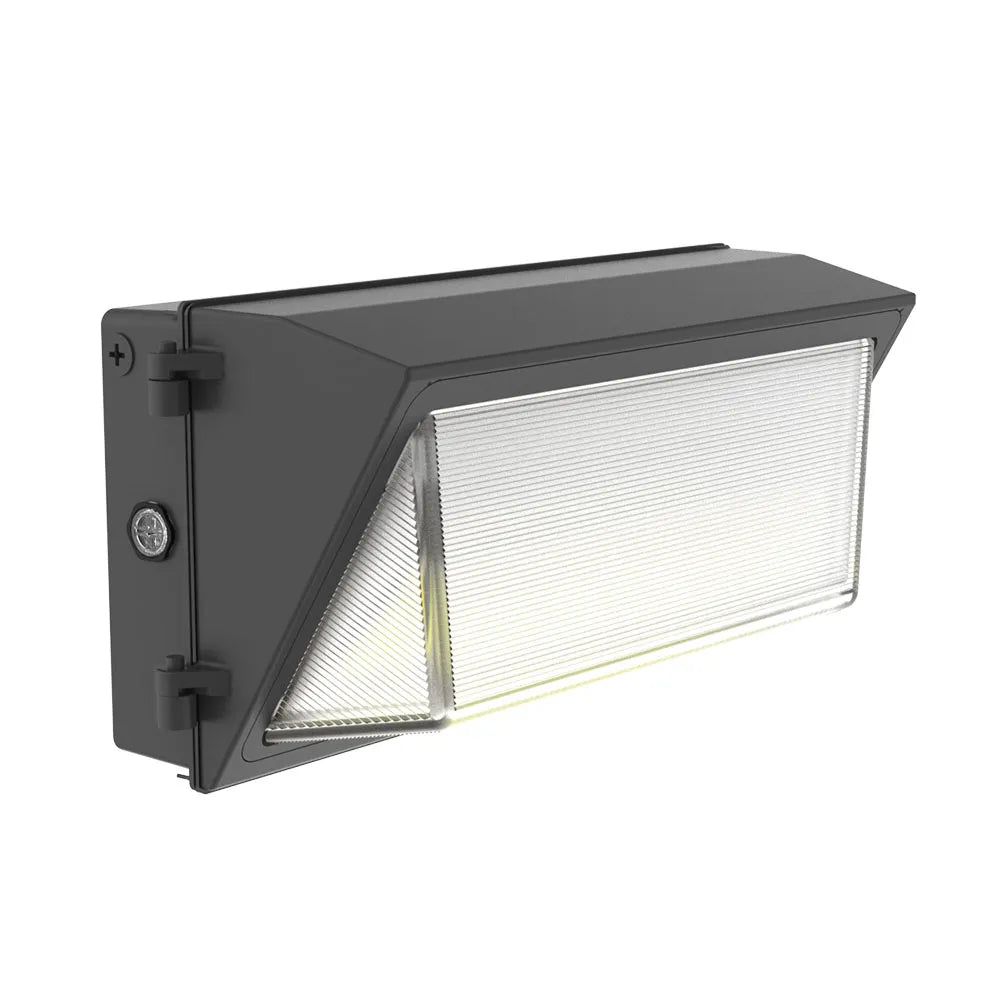

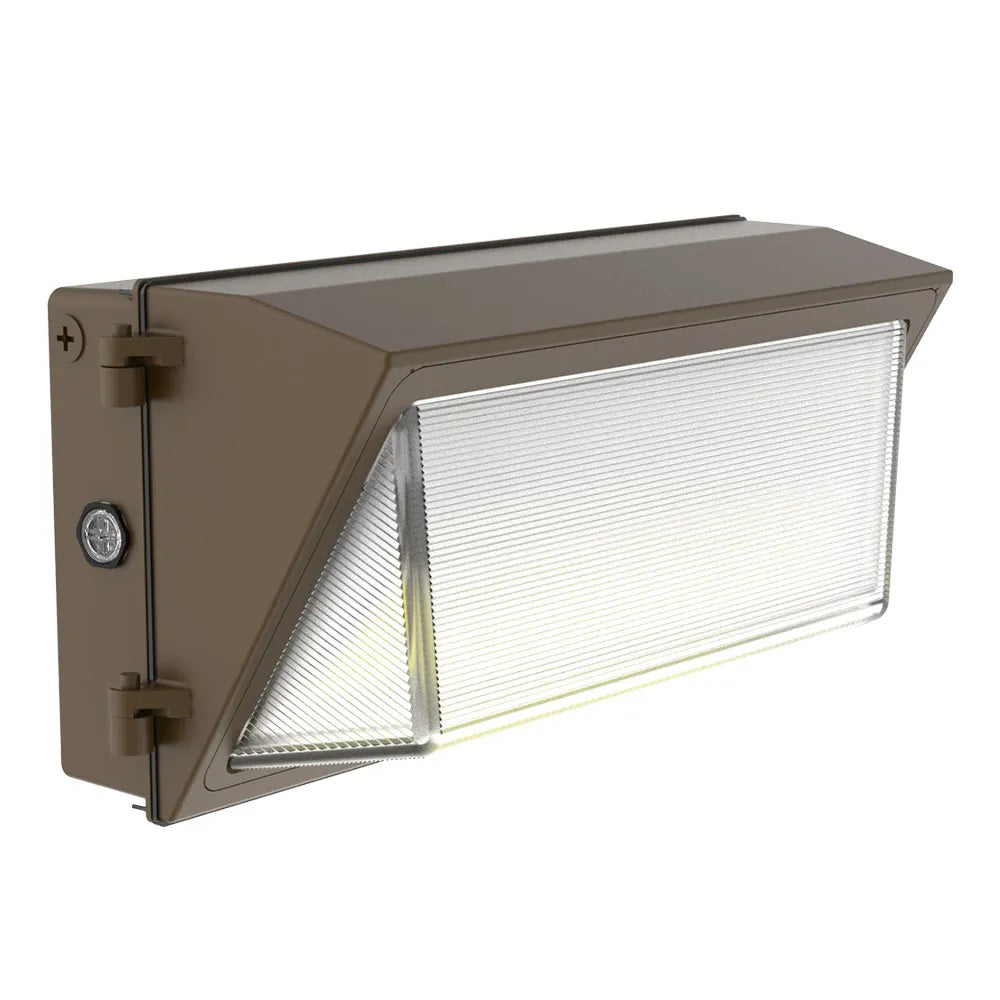

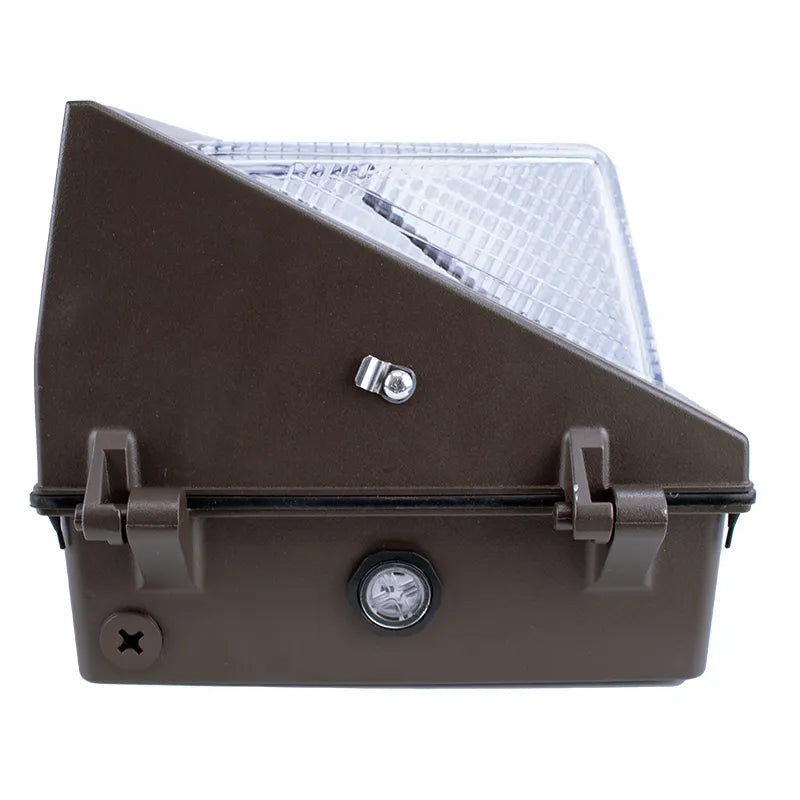

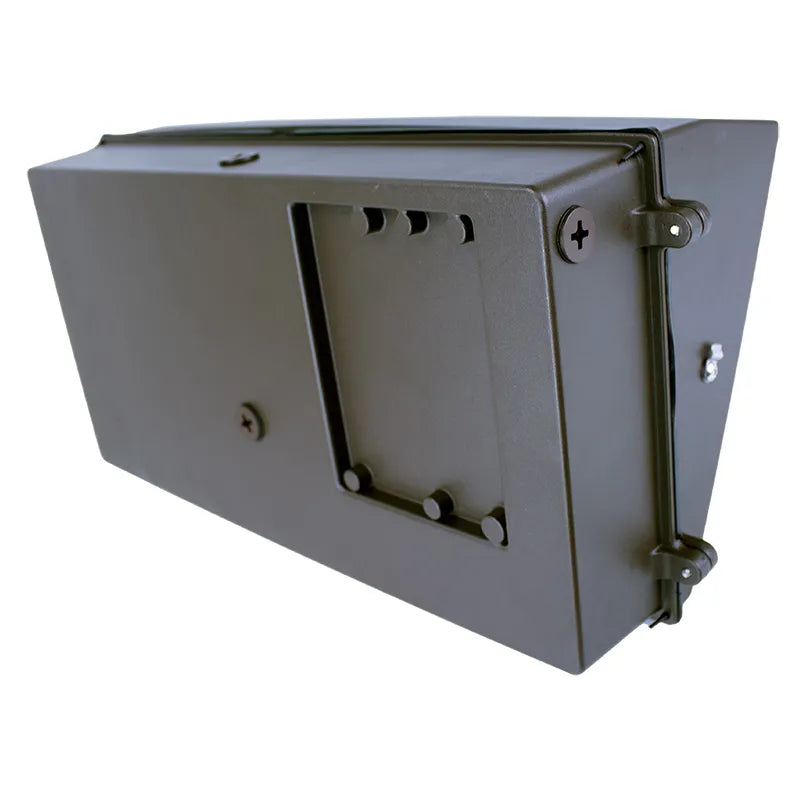

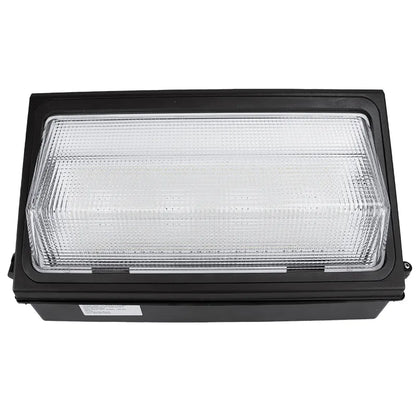

Upgrade exterior security and site lighting with the Westgate WMXE-LG-100-150W-MCTP-P Traditional LED Wall Pack with Photocell, delivering up to 21,000 lumens and on-board wattage and CCT tuning for ultimate job-site flexibility.
- Field-Selectable Wattage & Lumens: Toggle between 100W/120W/150W outputs to deliver 14,000–21,000 LM (up to 140 LPW) from a single fixture.
- Tri-Color Switch: Instantly choose 3000K/4000K/5000K to match ambience or code requirements.
- Integrated Photocell: DC button photocell with override switch provides dusk-to-dawn control straight out of the box.
- Rugged Build: Die-cast ADC12 aluminum housing with corrosion-resistant powder coat and prismatic borosilicate glass lens withstands harsh environments.
- All-Weather Rated: IP65 listed for wet locations; reliable operation from –40 °F to 104 °F.
- Controls Ready: 0–10 V dimming leads allow seamless integration with advanced control systems.
- Quick Retrofit: Matches the footprint of legacy HID wall packs and includes four ½-inch conduit hubs for easy wiring.
- Long Life & Warranty: 70,000-hour L70 lifetime backed by a 7-year manufacturer warranty.
Applications: Perfect for building perimeters, doorways, loading docks, pathways, alleys, and parking areas.
