Description and Specifications

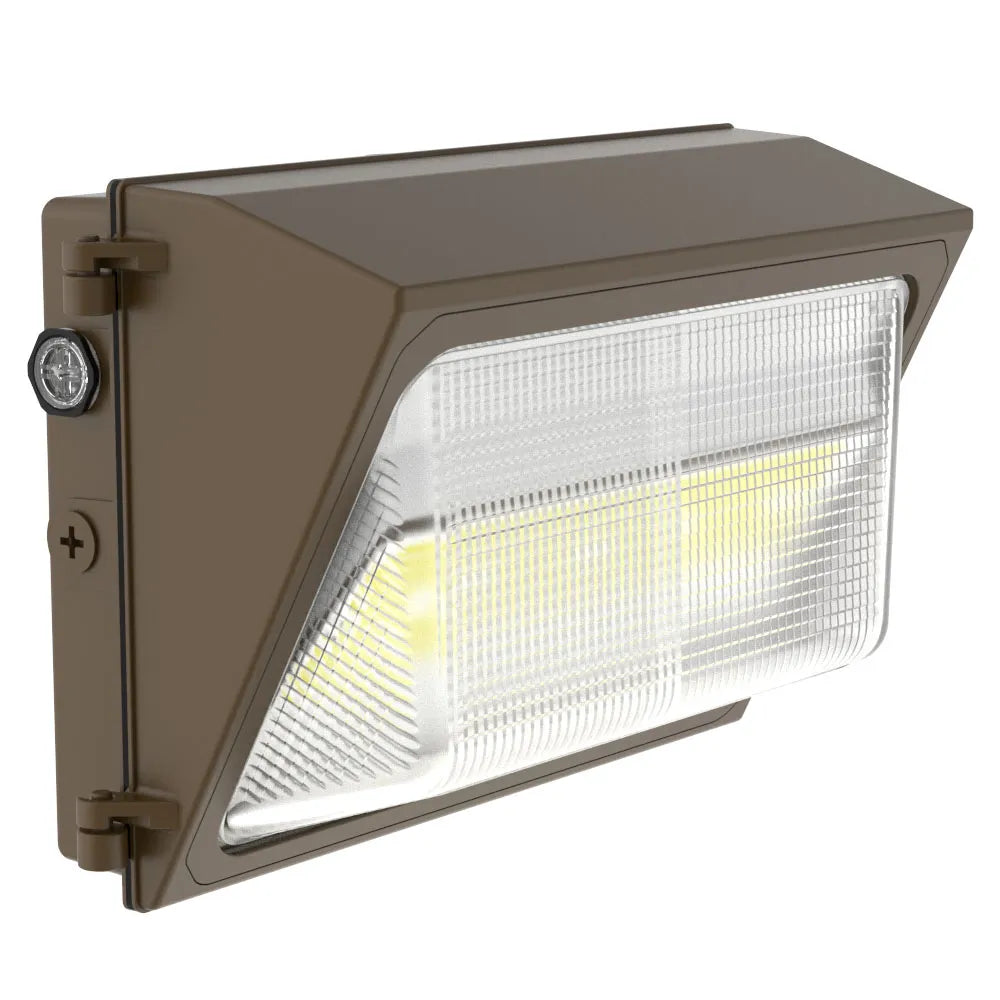

Upgrade perimeter and security lighting with the Westgate WMXE-MD-45-85W-MCTP-P-EM Traditional LED Wall Pack with Photocell and Emergency Backup, a multi-watt, field-selectable fixture that keeps sites illuminated even when the power goes out.
- Multi-Watt & 3-CCT: Internal switches select 45W/65W/85W and 3000K/4000K/5000K for on-site flexibility.
- High Output: 6,300 to 11,900 lumens at up to 140 LPW deliver bright, energy-saving performance.
- Emergency Backup: Factory-installed battery automatically provides code-compliant egress illumination during outages.
- Photocell Included: DC button photocell with on/off switch enables dusk-to-dawn control out of the box.
- 0–10 V Dimming & Universal Voltage: Operates on 120–277 V circuits and integrates with modern lighting controls.
- Rugged Build: Die-cast ADC12 aluminum housing with outdoor powder coat and prismatic borosilicate glass lens matches the footprint of legacy HID packs.
- All-Weather Rated: IP65 wet-location listed and functions from –40 °F to 104 °F for year-round reliability.
- Fast Installation: Four ½-inch hubs (top, sides, rear) and a wall-mount template streamline retrofit projects.
- Long Life & Warranty: L70 rated 70,000 hours and backed by a 7-year manufacturer warranty.
Applications: Ideal for building perimeters, alleys, loading docks, doorways, pathways, and parking lots.
